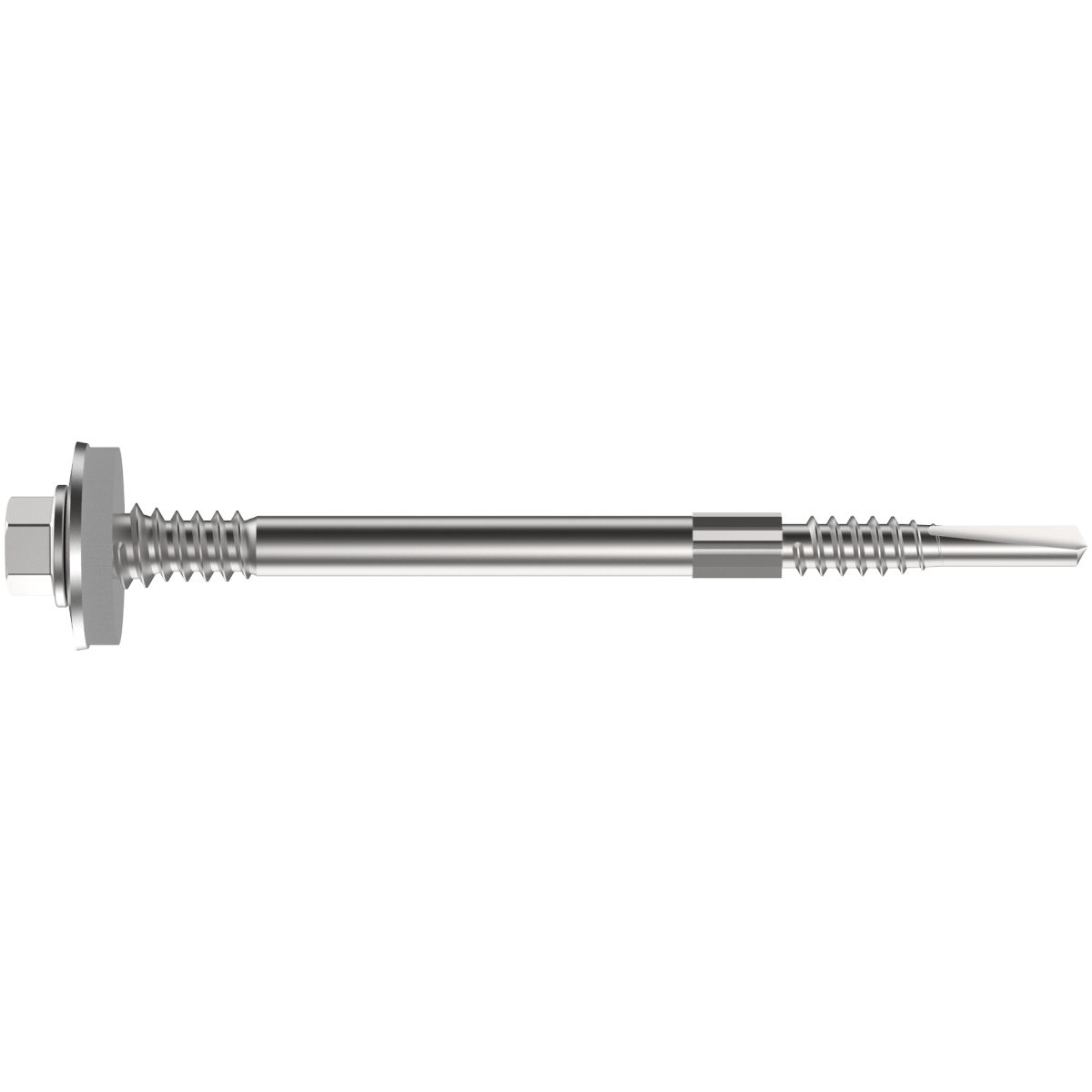

SFS spacer drill screws Durococat 480 SDRT2-T16-5,5x89
Article no.: 1576118
Catalog no.: 9656
Article code:
Product details
Technical Data
| L | 89 mm | |
| Drive | Hexagon | |
| Material | Case hardened steel | |
| KL | 60 mm - 60 mm | |
| Head shape | Hexagonal head | |
| s | 8 mm | |
| d2 | 16 mm | |
| k | 5.2 mm | |
| d1 | 5.5 mm |
Identification & Classification
| Article number | 1576118 | |
| Catalog number | 9656 | |
| EAN / GTIN | 7611188015910 | |
| Manufacturer number | 1576118 |
Description
Description:
- Fastener material: carbon steel, Durocoat®480
- Sealing washer: galvanised carbon steel
- EPDM seal
Advantage:
"
- Drilling screw for spacer fastening of metal profiles on cassettes
- No pre-drilling of profiles required thanks to the knurl on the shaft
- Perfect support function of profiles thanks to the support thread with cut-off thread end
- Defined fastening distance achieved thanks to the knurl on the shaft
- No torque control required thanks to the thread-free zone
- High corrosion resistance thanks to special galvanised coating
- High-quality EPDM sealing disc for permanent tightness
- Safe against unscrewing thanks to the cut thread
- High shear strength thanks to the optimised fastening geometry
Application Area:
Fastening profiles to cassettes with defined spacing.
