Article no.: 2086847

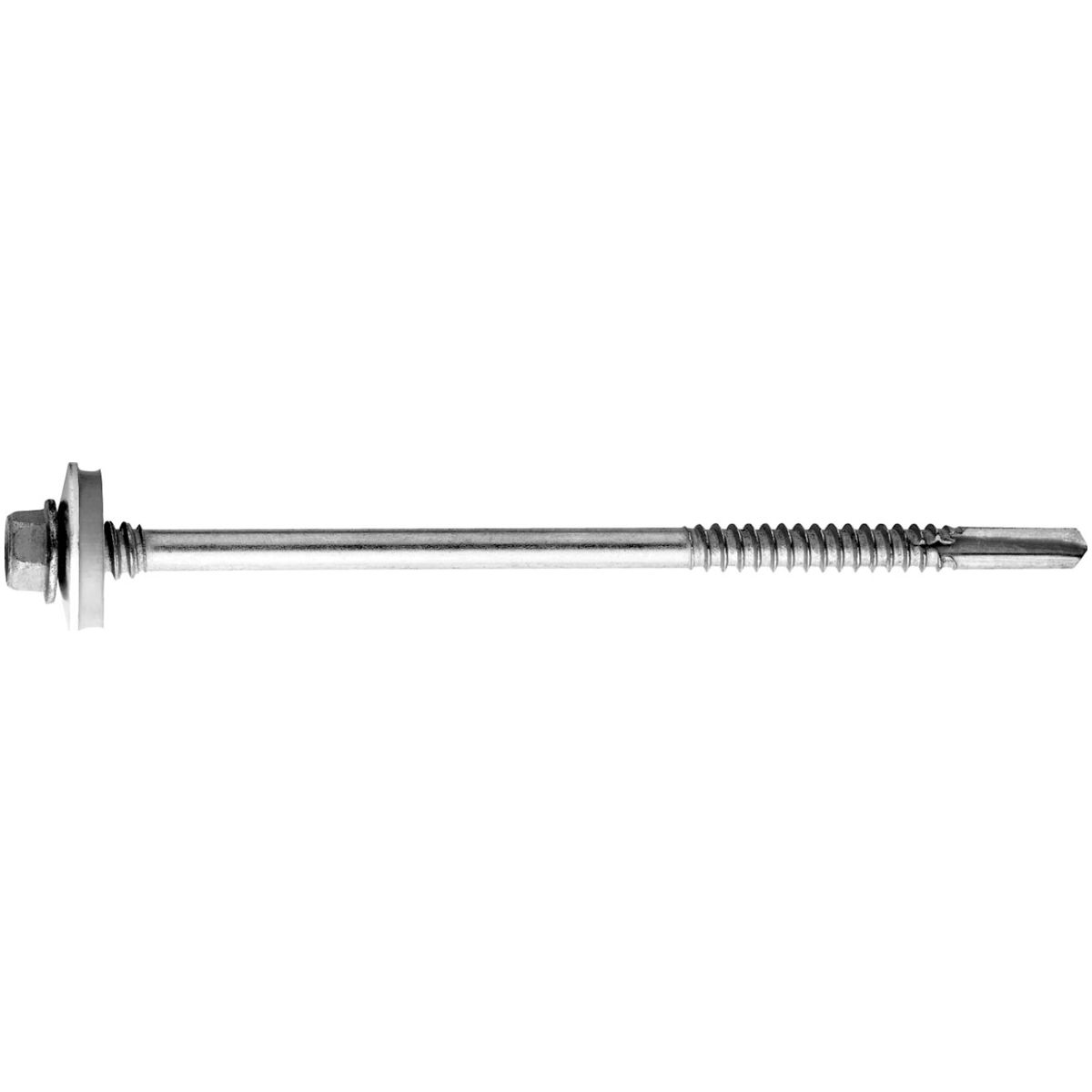

SFS Bohrschrauben Stahl verzinkt blau SDT14-A19-5,5x158
Article no.: 378796
Catalog no.: 9225
Article code:
Product details
Technical Data
| Application | Steel subframe | |
| L | 158 mm | |
| Sealing ring | With sealing washer | |
| Material | Case hardened steel | |
| Surface | zinc plated blue passivated | |
| CLmet | 93 mm - 132 mm | |
| D Steel | 93 mm - 124 mm | |
| Head shape | Hexagonal head | |
| s | 8 mm | |
| d2 | 19 mm | |
| k | 5.2 mm | |
| d1 | 5.5 mm |
Identification & Classification
| Article number | 378796 | |
| Catalog number | 9225 | |
| EAN / GTIN | 7611188107042 | |
| Manufacturer number | 1423884 |
Description
Description:
"Fastening of sandwich elements on steel substructures with a thickness of 4-13 mm. The support thread and the thread-free zone below the fastener head ensure that the outer sheet is optimally clamped between the sealing washer and the support thread. This guarantees the tightness of the fastener. No spherical caps are required.
with sealing washers aluminum A19"
with sealing washers aluminum A19"
Application Notes:
- D steel Thickness component 1 (thickness of sandwich element for steel application)
- KL Clamping length of the fastener
