Rastbolzen mit 6kt-Bund 8
Artikel-Nr.: 157704
Katalog-Nr.: Z371590
Sachnummer:
Produktdetails
Technische Daten
| Werkstoff-Nr. | 1.4305 | |
| SW | 19 mm | |
| d2 | M16x1.5 | |
| l5 | 23 mm | |
| Federkraft F1 | 11,5 N | |
| l3 | 26 mm | |
| Werkstoff | Stahl | |
| Federkraft F2 | 28 N | |
| d3 | 31 mm | |
| l4 | 8 mm | |
| l1 | 75,5 mm | |
| d1 | 8 mm | |
| l2 | 7 mm |
Identifikation & Klassifikation
| Artikelnummer | 157704 | |
| Katalognummer | Z371590 | |
| EAN / GTIN | 4030618204541 | |
| Herstellernummer | 22120.0208 |
Beschreibung
Ausführung:

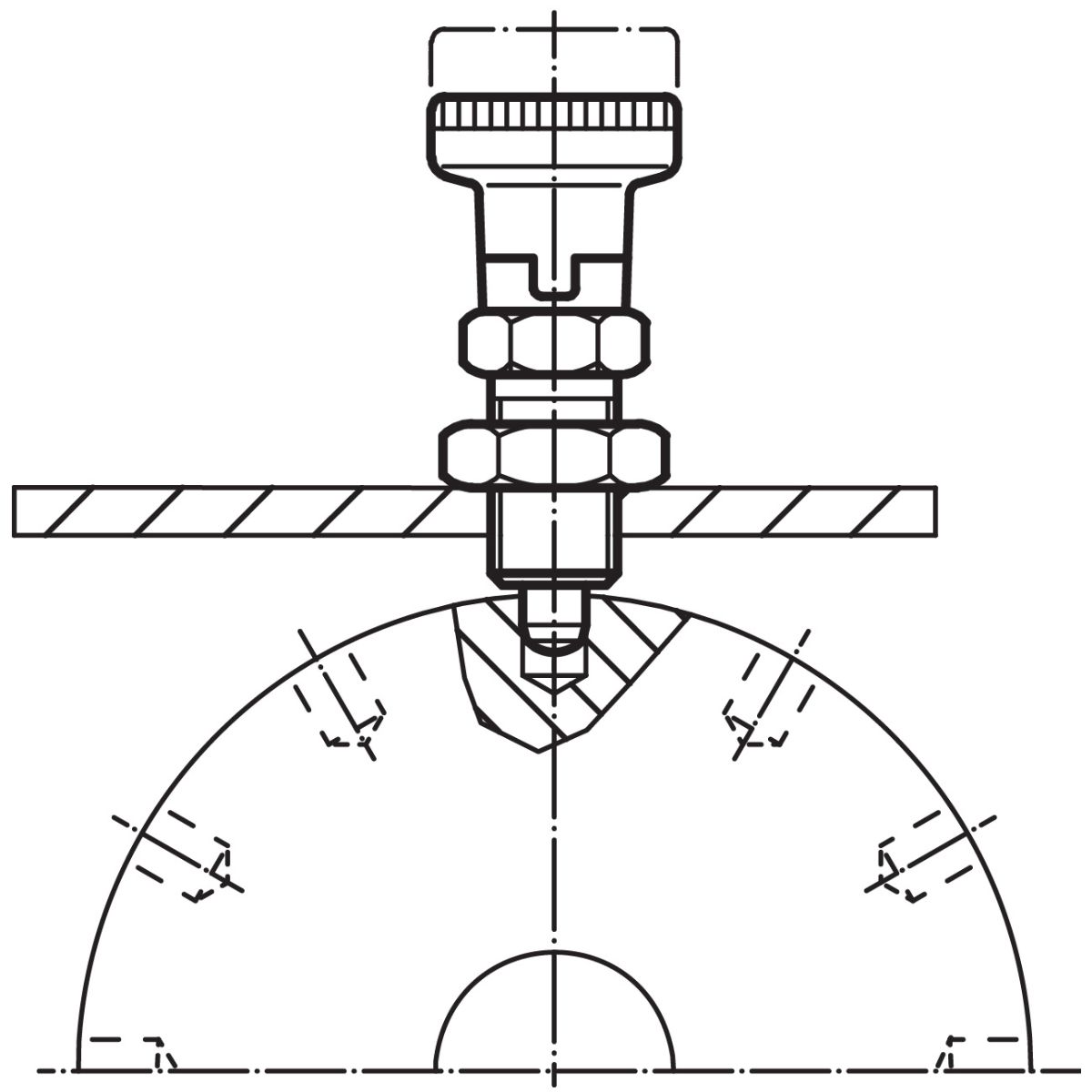

Index Plungers with hexagon collar and locking are used for indexing bores.
The knob is pulled-out, turned 9° and secured by a notched catch (when locking pin must not project).
The knob is pulled-out, turned 9° and secured by a notched catch (when locking pin must not project).
Beschreibung:
- Body: Free cutting steel, blackened
- Locking pin: Steel, hardened
- Knob: Thermoplastic PA 6, black, dull
The screw length can be adapted by distance collars for index plungers.
Hinweis:
Knob not removable. Lock nuts have to be purchased separately.
