Rastbolzen Miniraster, Rostfreier St 6
Artikel-Nr.: 516587
Katalog-Nr.: Z371506
Sachnummer:
Produktdetails

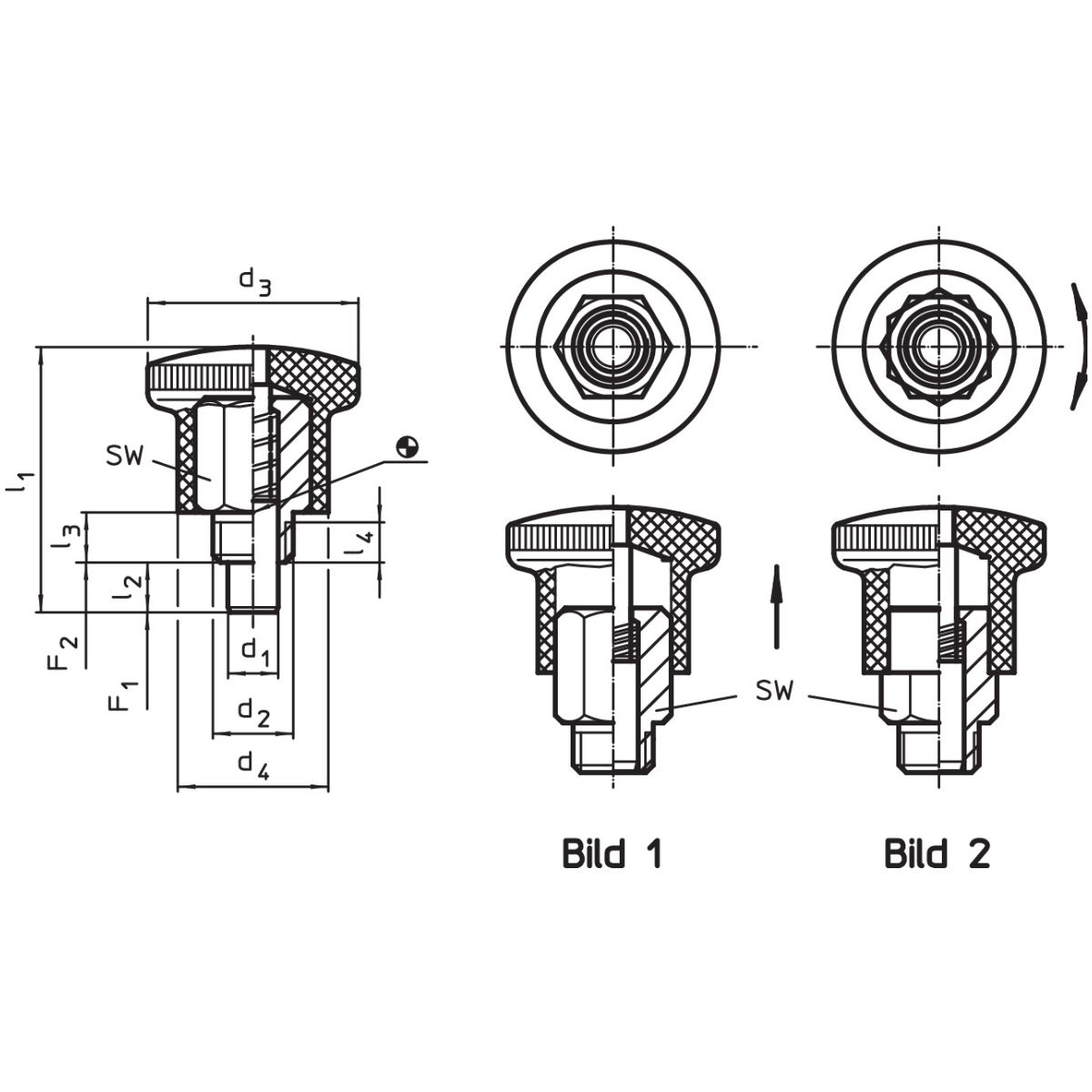

Technische Daten
| Werkstoff-Nr. | 1.4305 | |
| SW | 12 mm | |
| d2 | M10x1 | |
| Federkraft F1 | 18 N | |
| l3 | 7 mm | |
| Werkstoff | rostfreier Stahl (INOX) | |
| Federkraft F2 | 18 N | |
| d3 | 25 mm | |
| d4 | 18 mm | |
| l4 | 4,5 mm | |
| l1 | 34 mm | |
| d1 | 6 mm | |
| l2 | 7 mm |
Identifikation & Klassifikation
| Artikelnummer | 516587 | |
| Katalognummer | Z371506 | |
| EAN / GTIN | 4030618203421 | |
| Herstellernummer | 22110.0048 |
Beschreibung
Ausführung:
Particularly suitable for screwing into thin walled pieces. Performance in the smallest space requirements.
When using the self-locking type the knob is pulled-out, turned 3° and secured by a notched catch.
When using the self-locking type the knob is pulled-out, turned 3° and secured by a notched catch.
Beschreibung:
- Body: Stainless steel 1.435
- Locking pin: Stainless steel 1.435
- Knob: Thermoplastic PA 6, black, dull
Screw in the mini index. By lifting the knob, the hexagon will be released for assembly. The screw length can be adapted by distance collars for index plungers.
Hinweis:
Knob not removable.
