Rastbolzen, einf. Ausführung 6/M10
Artikel-Nr.: 516673
Katalog-Nr.: Z371717
Sachnummer:
Produktdetails

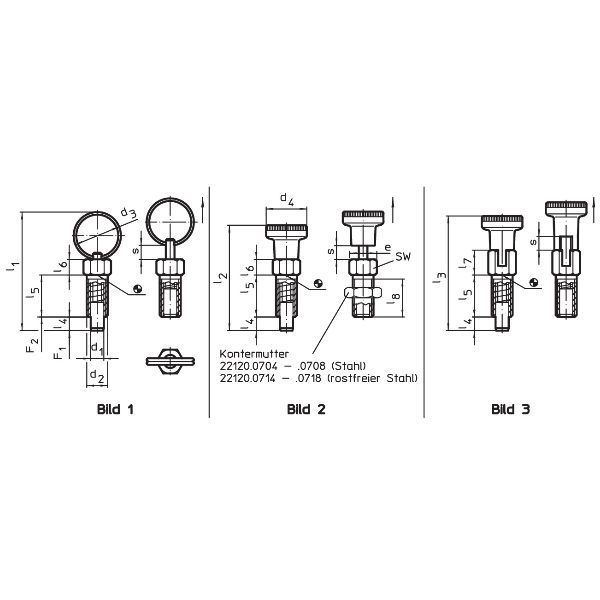

Technische Daten
| SW |
10 mm
|
|
| l5 |
17 mm
|
|
| Werkstoff |
Rostfreier Stahl
|
|
| l3 |
20 mm
|
|
| d3 |
18 mm
|
|
| e |
11.5 mm
|
|
| s |
6 mm
|
|
| Werkstoff-Nr. |
1.4305
|
|
| d2 |
M10
|
|
| Federkraft F1 |
5 N
|
|
| Federkraft F2 |
21 N
|
|
| l4 |
7.5 mm
|
|
| l1 |
49 mm
|
|
| l2 |
6 mm
|
|
| d1 |
6 mm
|
Identifikation & Klassifikation
| Artikelnummer | 516673 | |
| Katalognummer | Z371717 | |
| EAN / GTIN | 4030618206149 | |
| Herstellernummer | 22120.0786 | |
| Artikelklasse | W3N |
Beschreibung
Ausführung:
Application is limited to cases not requiring a precise positioning. Simple finish with very small dimensions.
When using locking index plungers, the knob is pulled-out, turned 9° and secured by a notched catch (when locking pin must not project).
When using locking index plungers, the knob is pulled-out, turned 9° and secured by a notched catch (when locking pin must not project).
Beschreibung:
- Body: Stainless steel 1.435
- Locking pin: Stainless steel 1.435
- Knob: Thermoplastic PA 6, black, dull
Hinweis:
Kontermuttern sind getrennt zu bestellen. Knopf nicht demontierbar.
